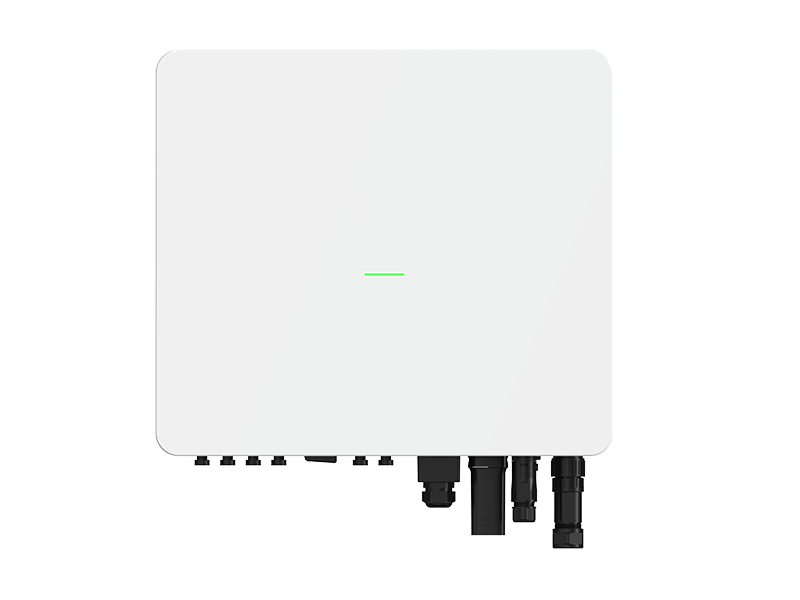

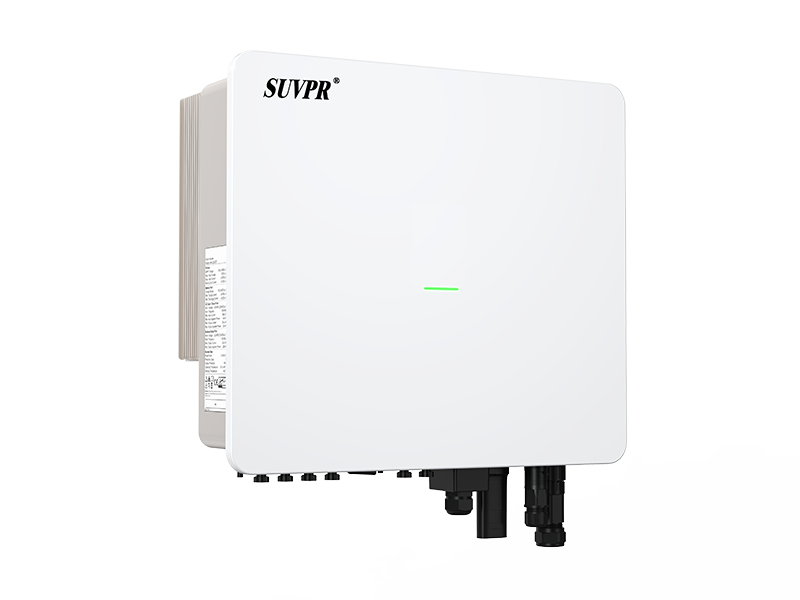

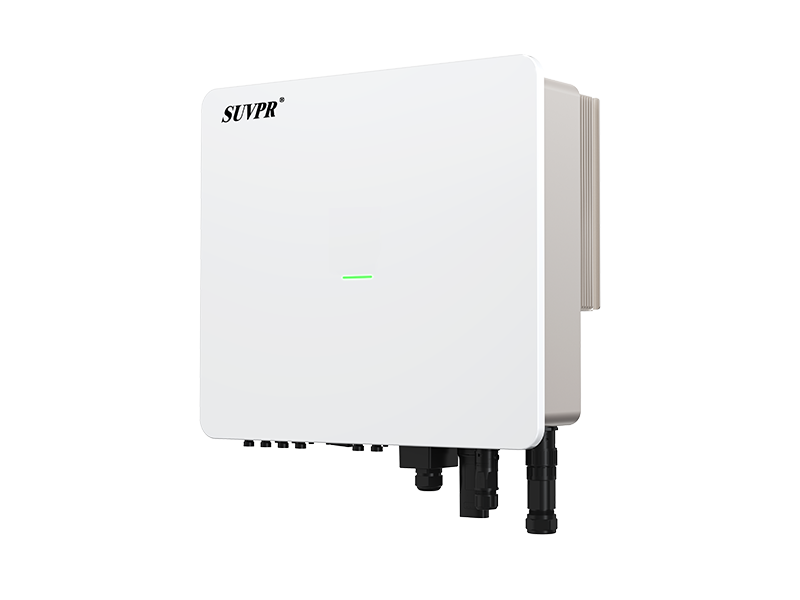

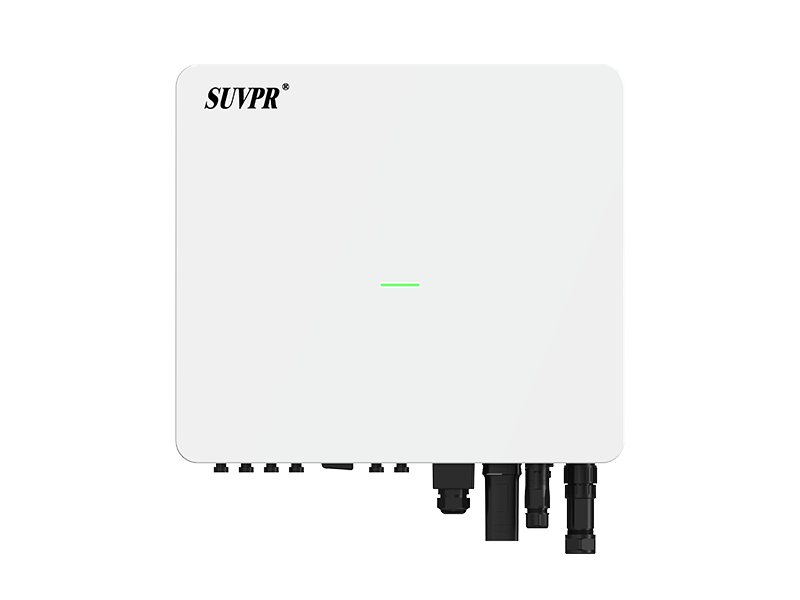

Three Phase High Voltage Off-Grid Hybrid Inverter | 10–20kW | SNE10000–20000TO | 2 MPPT
Model:Powerful and Scalable Off-Grid Solution | 3-Phase | High Voltage Battery Compatible | Ideal for Residential & Commercial Applications
The SNE10000–20000TO Series (10–20kW) is a high-performance off-grid solar inverter designed for remote and unstable power areas, such as islands, communication stations, border posts, and rural sites. It supports CAN/RS485/DRED/Dry contact/Parallel port communication port, features a user-friendly LED display, and offers a compact design with excellent cost-performance, making it ideal for residential, commercial, and battery integration applications.

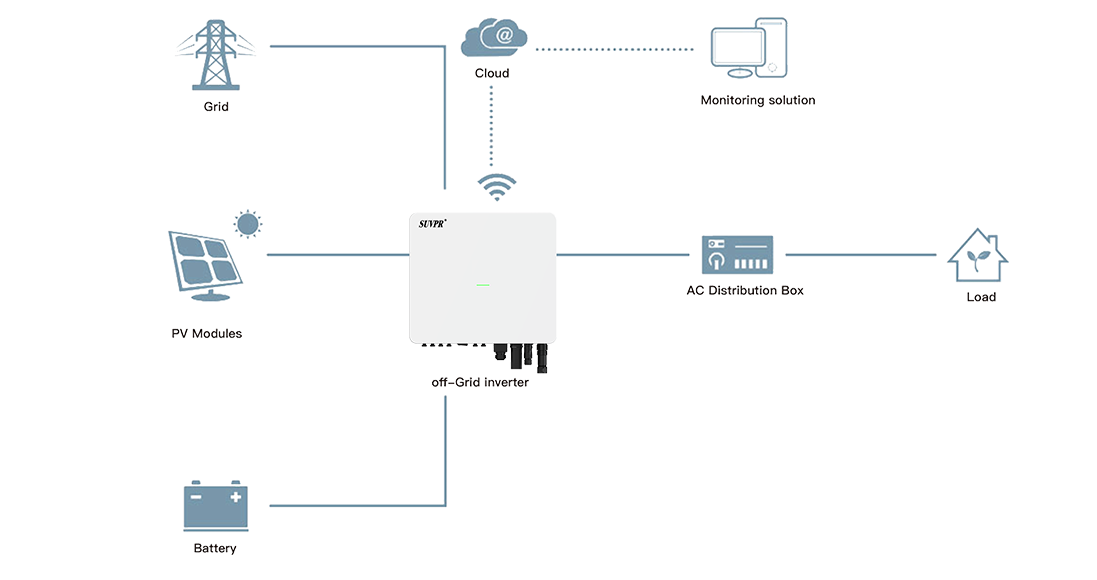

Sistem Topolojisi Diyagramı
Sistem Topolojisi Diyagramı
Fonksiyonel Avantajlar
Ana Özellikler
Esnek
●AC bağlantılı sistemleri destekler
●Operates up to 5000m altitude (derating >3000m)
●150–200% PV input power for enhanced energy utilization
Güvenilir
●200% grid input capability for faster charging
● Up to 6 units can be connected in parallel
● <10ms seamless switching between on-grid and off-grid modes
Intelligent
●Dual independent battery ports for mixing old and new batteries
●SiC technology ensures up to 98.2% efficiency
●Supports 100% three-phase load unbalance
Neden Bu Ürünü Seçmelisiniz?
Why Choose Our Off grid solar inverter?
Energy Freedom
Works completely off-grid, ensuring uninterrupted power in remote or unstable-grid locations.
High Solar Utilization
Up to 200% PV input with multiple MPPTs to capture maximum solar energy.
Flexible Storage Compatibility
Supports both lithium and lead-acid batteries (51.2V) for diverse user needs.
Fast Backup Response
<10ms switchover ensures critical loads stay powered during outages.
Smart Management
Remote monitoring and EMS integration keep your system under control, 24/7.
Uygulama Alanları
Uygulama Senaryoları ve Kullanım Durumları
Off-Grid Homes & Remote Living
Live independently from the grid with reliable, sustainable energy. Whether it’s a mountain cabin, island villa, or rural residence—our off-grid inverter keeps your home powered 24/7.
Small Businesses & Remote Commercial Sites
Power your operations even in the most remote areas. From farms and workshops to small offices and warehouses—enjoy stable electricity, reduce diesel costs, and stay productive without interruption.
Telecom & Critical Infrastructure
Keep your systems online at all times. Designed for telecom towers, base stations, and remote infrastructure, our inverter ensures seamless, dependable power in mission-critical applications.
Emergency & Disaster Response
Fast deployment. Reliable backup. In disaster relief zones or emergency shelters, this inverter becomes a lifeline—keeping medical equipment, communication, and lighting fully functional.
Recreational Vehicles & Mobile Energy
Adventure without limits. From RVs to off-grid travel trailers, enjoy freedom powered by the sun. Compact, quiet, and clean—perfect for eco-conscious travelers and outdoor enthusiasts.
Sustainable Development & Government Projects
Designed to meet the needs of rural electrification and energy access programs worldwide. A trusted solution for NGOs, energy agencies, and public sector partners working to power up communities.
Şartname
Şartname
| Model Adı | 10000TO | 12000TO | 15000TO | 18000TO | 20000TO |
| Şebekeden Bağımsız Çıkış | |||||
| Nominal Çıkış Gücü | 10kW | 12kW | 15kW | 18kW | 20kW |
| Tepe Güç Süresi | 11kVA-60'lar | 13.2kVA-60'lar | 16.5kVA-60'lar | 19.8kVA-60'lar | 22kVA-60'lar |
| Nominal Gerilim | 3/N/PE, 220/380Vac, 230/400Vac | ||||
| Nominal Frekans | 50/60Hz | ||||
| Nominal Çıkış Akımı | 15A | 18A | 22.5A | 27A | 30A |
| Çıkış THDu | <3% | ||||
| Grid Parameter | |||||
| Maks. Şebekeden Giriş Gücü | 20kW | 24kW | 30kW | 36kW | 40kW |
| Maks. Şebekeden Giriş Akımı | 29A | 35A | 44A | 52A | 58A |
| Nominal Şebeke Gerilimi | 3/N/PE, 220/380V, 230/400V, 240/415V | ||||
| Grid Voltage Range | 184-276V/320-480V | ||||
| PV Girişi | |||||
| Maks. Giriş Gücü | 20000Wp | 24000Wp | 30000Wp | 30000Wp | 30000Wp |
| Maks. Giriş Gerilimi | 1000V | ||||
| MPPT Sayısı | 2 | ||||
| Maks. MPPT Başına Giriş Dizesi | 2 | ||||
| Mppt Voltage Range | 130-960V | ||||
| Nominal Giriş Gerilimi | 600V | ||||
| Başlangıç Gerilimi | 200V | ||||
| Maks. Giriş Akımı | 25A/25A | ||||
| Kısa Devre Akımı | 30A/30A | ||||
| Pil Parametresi | |||||
| Pil Türü | Lithium-ion/Lead-Acid/Sodium-ion(opioonal) | ||||
| Pil Giriş Sayısı | 2 | ||||
| Akü Gerilim Aralığı | 125-800V | ||||
| Tam Yüklü Akü Gerilim Aralığı | 210-800V | 250-800V | 300-800V | 360-800V | 400-800V |
| Pil Şarj/Deşarj Akımı | 25A*2 | ||||
| Tepe Şarj/Deşarj Akımı Süresi | 35A*2-60'lar | ||||
| Yeterlik | |||||
| Maks. verimlilik | 98.20% | ||||
| Avrupa Verimliliği | 97.70% | ||||
| Maks. Pil Şarj/Deşarj Verimliliği | 97.80% | ||||
| Genel Veriler | |||||
| Boyut (G * Y * D) | 573mm*509mm*219mm | ||||
| Ağırlık | 35kg | ||||
| Gürültü | <45dB | ||||
| Çalışma Sıcaklığı | -25℃ +60℃ | ||||
| Soğutma Yöntemi | Akıllı Hava Soğutma | ||||
| Giriş Koruma Sınıfı | IP65 | ||||
| Sabahlama | LED/WIFI/4G/Bluetooth/RS485 | ||||
| Communicaioon Port | RS485/CAN/DRED/Kuru kontak/Paralel port | ||||
| Koruma | DC Switch; AC Overvoltage Protection; AC Overcurrent Protection; AC Short Circuit Protection;Anti-islanding Protection; Residual Current Monitoring; PV Insulation Resistance Detection; Surge Protection:LEVEL II; Reverse Polarity Protection(PV&Battery]:Lightning Protection | ||||
